Solar Air Heater Manufacturer.
This solar air heater assembly is a component module system designed for commercial and residential applications.

Solar Air Heater, Solar Air Heating Systems

Solar air heaters work by circulating air from inside your home through the systems mounted on the exterior wall. The room air can gain up to 30 - 40 degrees before being vented back into the room. Our module system design allows a multiple array to accommodate maximum outside surface area. Two 4-5" holes are required to be drilled through the exterior wall to accommodate the intake and exhaust ducts. These solar air heaters are used to supplement an existing home heating system and can save up to 30% to 40% on home heating costs annually.

Installation is inexpensive and easy:

Solar Air Heater 100% Clean solar energy
Solar Air Heater supplies fresh, warm and dry air to your house using solar. This is an innovative room heater. It's clean, quiet, safe, free of any operation costs. This ultimate solution for non grid areas can work safely even when you are away and protects your dwelling from moisture damage and bad odors.

Our systems design is simple and within the capacity of any DIY-er. Other solar air heaters measure between 4 to 5 feet wide by 7 to 8 feet high. They're heavy, so you'll need a helper or two to mount one on a roof or side of your dwelling adding a considerable installation cost. The freight can easily run between, $300.00 to $600.00 per panel.

Our Solar Air Heater 1500 Series Modules have been specifically designed to be both easy to install (1 person installation) and easy to remove in the event of relocating. Easy under the arm handling makes this a safe, and easy installation. Shipping and handling of each Module is between 22.00 and 35.00 per module, saving hundreds of dollars when calculation your initial cost over other available solar air heater systems.

All of the materials used in the fabrication of our Solar Air Heater 1500 series module are made in the United States of America.  The thermal absorbing insert are protected by a United States Patent. The proprietary design of the 1500 series manufactured by Solar Air Systems is manufactured under a license agreement.

The inserts are constructed of thin gauge, annealed, aluminum sheet. Each insert with dimensions of 14 by 6 inches. It has rigidity in its length.  One side is coated with a high temperature carbon based paint, tailored to the infrared spectrum of sunlight, while the other side is clear aluminum and quite irradiative.

Return on Investment:

The return on investment (ROI) for a solar air heater purchase is relatively short. Your energy savings will equal the cost to buy and install the system in 2 to 4 years.  Unlike conventional heating systems, solar air heaters require very little maintenance and they keep working decades beyond the initial cost. "A greener energy solution for the world" is our company slogan and purchasing our solar air heater modules will decrease Propane, Electricity, Natural Gas, and Oil consumption. The energy source to power your solar air heater module system is sunlight, and it’s free from day one.

The 1500 Series is a module array heater assembly with step-wise heating technology™ providing heating of air in a step-wise manner.


The patented technology (7,434,577) of our 1536 Solar Air Heater series sets a new industry standard for the solar air heater industry. Each collect insert has a combined surface area of 2.125 square feet. Additionally, the combined 7 inserts in each Solar Air Heater module equals 14.875 square feet of energy to heat transfer in a smaller, easy to handle and install unit.

A second patented benefit is the angle of each insert which creates a separate partition between each insert. The benefit is clear; when room air first enters the first 1536 module it must pass thru the first collector insert surface. Continuing to the second, third, and so on to the seventh collector insert. Hence the terminology,  “Step-wise Heating™”.

When the air passes thru the first Solar Air Heater module it’s preheated by each partition. The air passes to the second module and travels in the same fashion only up each individual insert instead of down like the first module. Then, over to the next module down each insert and then to the next module and up and thru each insert back into the room.

You can combine as many 1536 Solar Air heater modules to accommodate your heating requirements. Because of the up down and over design, 1536 modules must be purchased in pairs (2 ea.)  Ther is no limit to your array of modules.

This makes for the most efficient solar air heater system in North America.

The Model 6036 is 60 inches wide by 36 inches tall. Build a Solar Air Heating array to accommodate your heat output requirements.

• Easy Mounting Tabs - Top and Bottom
• 3/16" Tempered Low Iron Glass
• U.S. Patented Module System with High Heat Chambers using "Step-Wise Heating Technology™".
• 36 lenght by 60 inches wide.
• Aluminum Enclosures
• Powder coated paint finish (black)
• Fully insulated
• Low cost Shipping and Handling.
• 5 year warranty

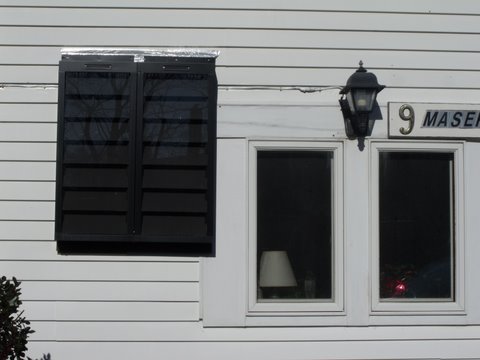

Member Services Solar Air Model 3036 Installation Martha's Vineyard, Ma.

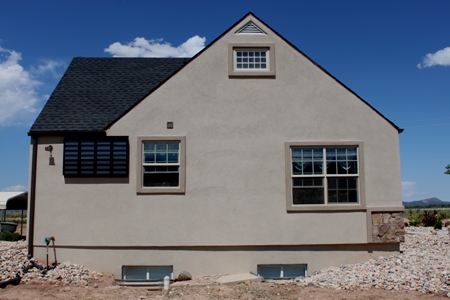

Solar Air Heater - Utah



Solar Air Profile System - Fairplay, CO



Solar Air Heater 8-Panel System Breese, IL



Western Massachusetts - New Construction

Item Name:
Solar Air Heater Manifolds for 48 Wide
Item #:
SWHM048
Price/ea:
$89.97

Another Industry first for Solar Air Systems!

Now it's easy to build a professional solar air heater with unmatched performance. The Solar Air Heater Top and Bottom Precision manufactured Aluminum Manifold for the Patented Solar Air Profile Series are sold in pairs.

Item Name:
Solar Air Heater Fan with Controller
Item #:
SAC120CFM
Price/ea:
$149.95


Airflow matching is critical when designing a solar air heater. Our controller uses a thermistor to constantly monitor inside panel temperature.

Our solar air heater programmable circuit design enables preset temperature settings. Multiple temperature set way points enable the fan to either ramp up or down depending on your inside panel temperature.

Examples: If a cloud passes between the sun and the panel, the temperature drops. The fan will automatically ramp down. If it’s a hazy day, one of the preset temperatures will control CFM output to accommodate the panel temperature. A bright sunny day, the fan will ramp up to full CFM output.

True match airflow based on panel temperature ensures maximum efficiency.

Factory set to your specification at no charge. Our solar air heater fan systems are programmable circuit design with multiple preset temperature settings. Factory set to your specification at no charge.
